Technical Parameters
| Main Parameters | Vehicle Dimensions (L*W*H) (mm) | 5,960*2,020*2,700 |
| Wheel Base (mm) | 3,665 |
| Curb Weight / Total Mass (kg) | 2,720 / 4,490 |
| Payload Capacity (kg) | 1,640 kg |
| Approach / Departure Angle (°) | 21 / 17 |
| Front / Rear Suspension (mm) | 1,020 / 1275 |
| Front / Rear Tracks (mm) | 1,720 / 1,716 |
| Steering Location | Left Hand Drive |
| Dynamic Performance | Max. Speed (km/h) | 100 km/h |
| Climbing Capacity (%) | 20% |
| Battery Capacity (kWh) | CATL-73.6 kWh |
| Peak Torque (kW/Nm) | 100 / 750 |
| Driving Range (km) | 288 km |
Chassis
Steering systems | Drive Mode | Front-engine Rear-drive |
| Front Suspension | Horizontal plate spring type independent suspension |
| Rear Suspension | Vertical 3 plate spring type |
| Steering Type | EHPS Electronic Hydraulic Power Steering |
Wheels
Brake System | Tire Size | 215/75 R16LT 12RP |
| Wheel Material / Tire | Aluminum Wheels / 4 |
| Brake Type | Front Disc/ Rear Drum |
| Parking Brake | Ratcheting Zip Type |
| Body Structure | Body Structure | Load-supporting |
| NO. of Doors | 5Pcs, Sliding door both side |

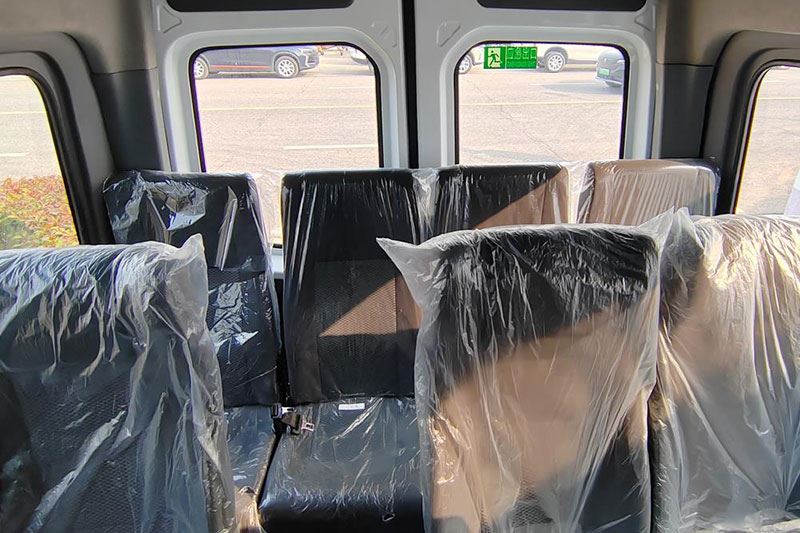

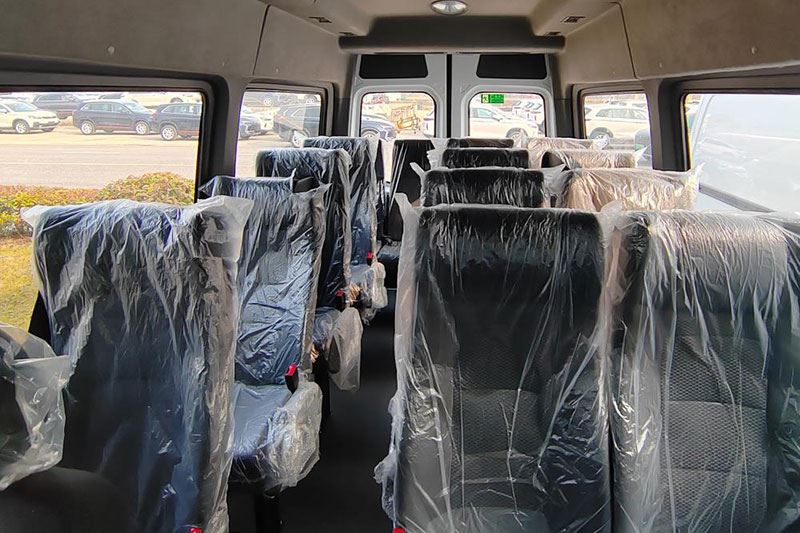

| NO. of Seats | 15-17 Seats |
Basic Configurations
| Remark：● Standard, ○ Optional |
| Charging Configuration |

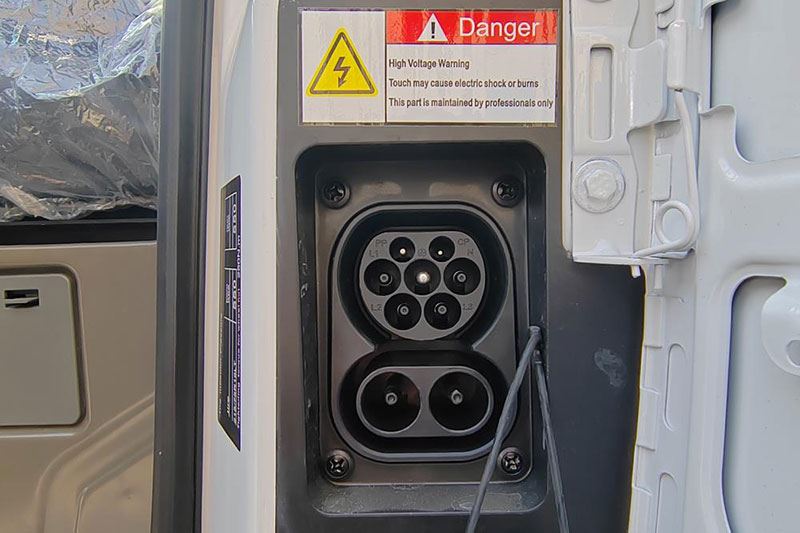

Fast Charger Compliant with Euro Standards |
● |
| Euro-Standard 22kW AC Slow Charger |
○ |
| Safety Device |
Pedestrian Reminder |
● |
| Driver’s Seat Belt Reminder |
● |
| ABS+EBD |
● |
| Three-point Safety Belts |
● |
| Controllability |
Reverse Radar |
● |
| Inner Rear-view Mirror |
● |
| LCD Instrument |
● |
| Wheel-Slip Control |
● |
| External Configuration |
Daytime Lamps |
● |
| Automatic Headlight |
● |
| Side Mark Lamp |
● |
| Headlamp Height Adjustable |
● |
| Electric Mirrors |
● |
| Upper Brake Lamps |
● |
| Rear Foot Rest |
● |
| Central Lock |
● |
| Remote Control Key |
● |
| Internal Configuration |
Front Door Electric Window |
● |
| Driver and Co-pilot Sunshield |
● |
| Aluminum Flooring |
● |
| Normal Ceiling |
● |
| Fabric Seat with High Foam Sponge |
● |
| Enclosed Steel Plate Partition |
● |
| Multimedia Configuration |
MP5 (Android)+Back up Camera |
● |
| NO. of Speaker |
● |
| Car Recorder |
2 |
| AC |
Air Conditioner (for cooling) |
● |
| PTC Heater |
● |
| Safety Equipment |
Reflective Vest |
● |
| Warning Triangle |
● |
| Spare Tire |
● |
| Jack (CE Mark) |
● |
Features
-
Customization of the number of rear seats.
-

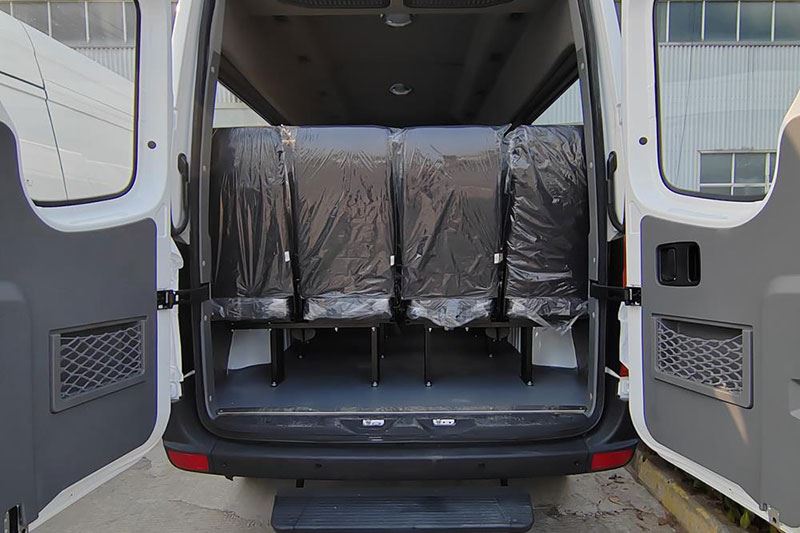

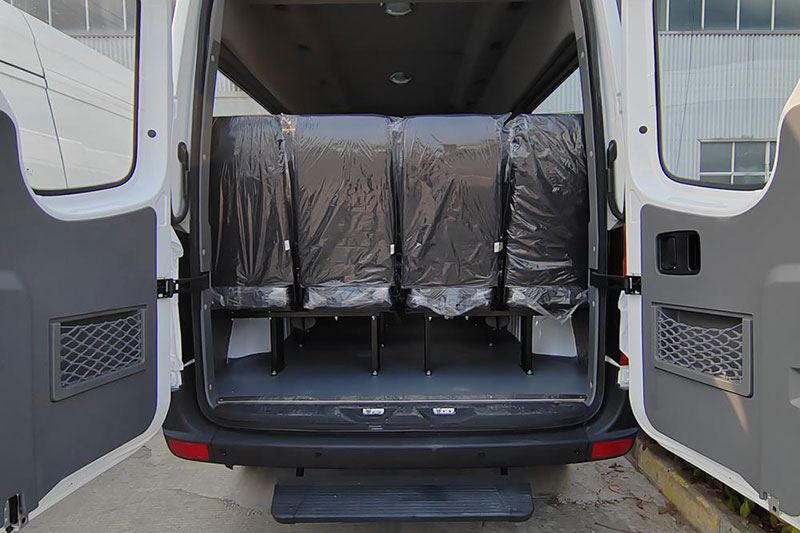

Barn door that is convenient for good loading and unloading.
-

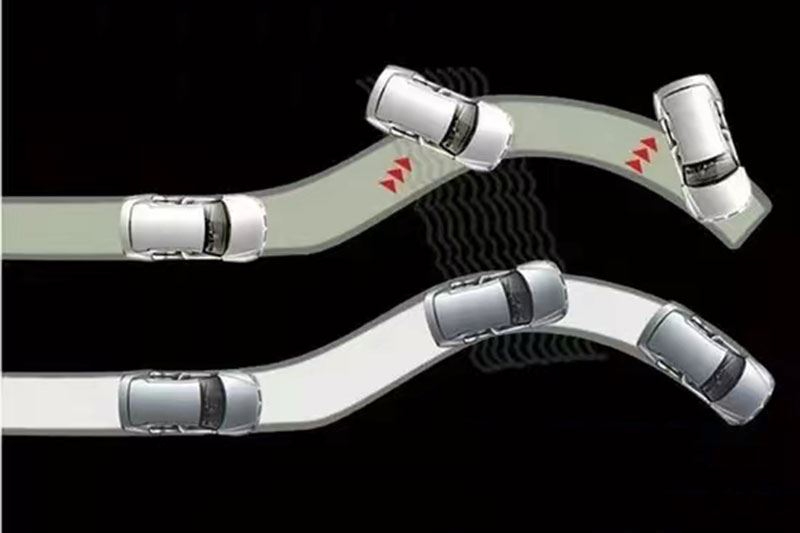

Equipped with ABS + EBD system, increasing the vehicle safety.
-
EqOptional driving modes of D/S (Drive/Sport) according to road conditions.
-

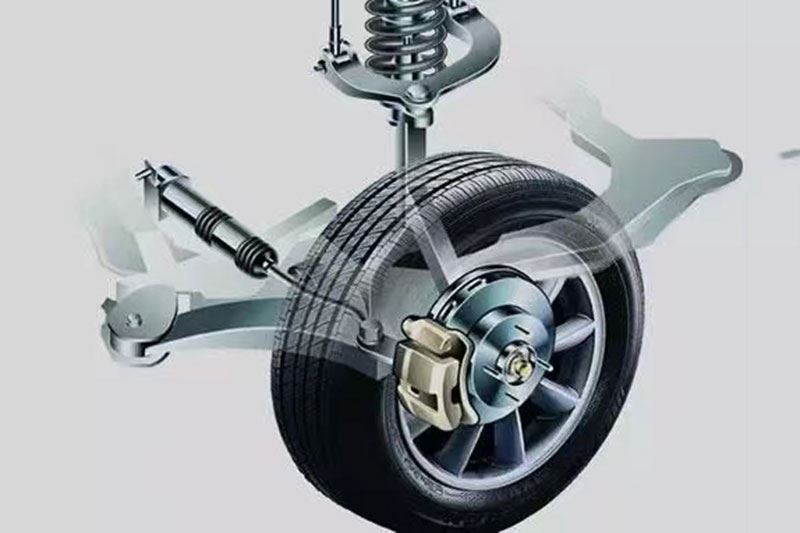

Adopted with the dual-circuit hydraulic braking system that ensures the vehicle’s stable performance.
-
Equipped with EPS (Electronic Hydraulic Power Steering) that provides a better driving experience.
Details
Aucwell is an EV company that specializes in producing electric cargo vans, electric minibuses, electric light trucks, and electric pickup trucks. Some of our models have received certification from the EU. Our partnership with Skywell allows us to offer a complete line of production and strong productivity, with the ability to provide customized solutions. Our products can be found in many countries overseas, and we have gained acceptance and a reputation for producing high-quality and high-performance vehicles.
