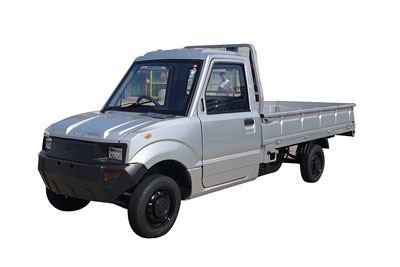

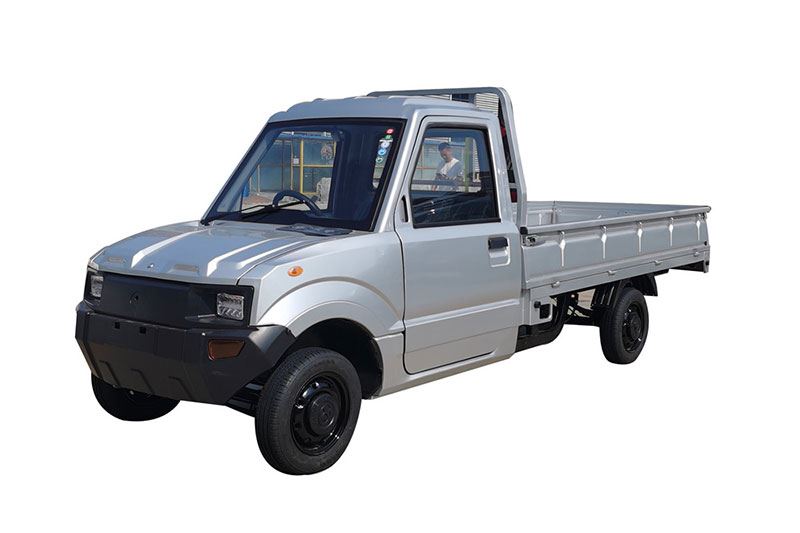

    PT-350

    Electric Pickup Truck

    This electric pickup truck is an all-electric vehicle with a sleek contour. The finely-decorated cab, broad vision, and complete configurations are dedicated to providing the pilot with pleasant driving experience.

    The high-strength riveted vehicle chassis is made using the integral bridge of the light-duty truck style, providing an excellent loading capacity for different delivery needs. Equipped with a combined main and auxiliary progressive multi-leaf composite steel spring rear suspension system, this electric car handles all types of roads with ease.

    The vehicle body is made of sheet metal with the key parts reinforced with steel plates for added durability and reliability. This electric pickup truck can be extended to 4,000 and 4,200mm in length or be connected with a cargo box for additional storage space.

    • Speed Range

      Speed Range

      40-45km/h

    • Storage Battery

      Storage Battery

      12V*5PCS,100AH

    • Traveling Range

      Traveling Range

      90-100km

    Technical Parameters
    Electrical System
    Controller 60V Intelligent Controller Motor 3,000W Alternator
    Storage Battery 12V*5PCS,100AH Traveling Range 90-100km
    Battery charger Vehicle-mounted Intelligent Charger Charging Time 8-10 hours
    Charger Voltage Single phase, 220V GW 700kg
    Technical Data
    Overall Size 3,550*1,450*1,580mm (L*W*H) Body & Chassis Material Metal
    Carriage Box Size 1,650*1,320*300mm (L*W*H) Loading Capacity 800-1,200 kg
    Speed Range 40-45km/h Braking Length ≤ 7 Meters
    Climbing Capacity 25-30% Min. Turning Radius 5900 MM
    Wheel Base 2,315 MM Front and Rear Tracks 1,360 MM
    Car Body System
    Seat Material Imitation leather (PU)
    Instrument Panel Combined Instrument (front/back signal, light, trumpet, dump energy, current speed display)
    Lighting System Combined type front light and back light, braking light, front/back turning light
    Switch System Light switch, main power switch, electric horn, wiper switch.
    Entertainment System Digital LCD panel, MP3 Player, USB Port, Backup Camera
    Car Body Painting Color can be customized.
    Air Conditioner Including A/C
    Chassis System
    Drive System Rear-drive motor (Controller adjusted automatically)
    Steering System Automatic adjustment rack and pinion direction
    Braking System Four wheel hydraulic brake + double circuit hydraulic brake + parking brake device + brake assist
    Tire 145-R12, Steel wheel hub, Air tire
    Front Axle & Suspension Integral front bridge suspension
    Details
    • Details

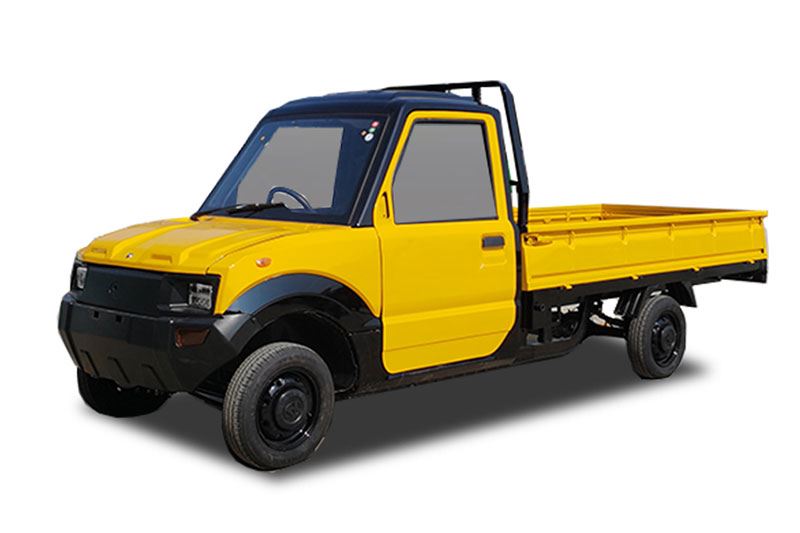

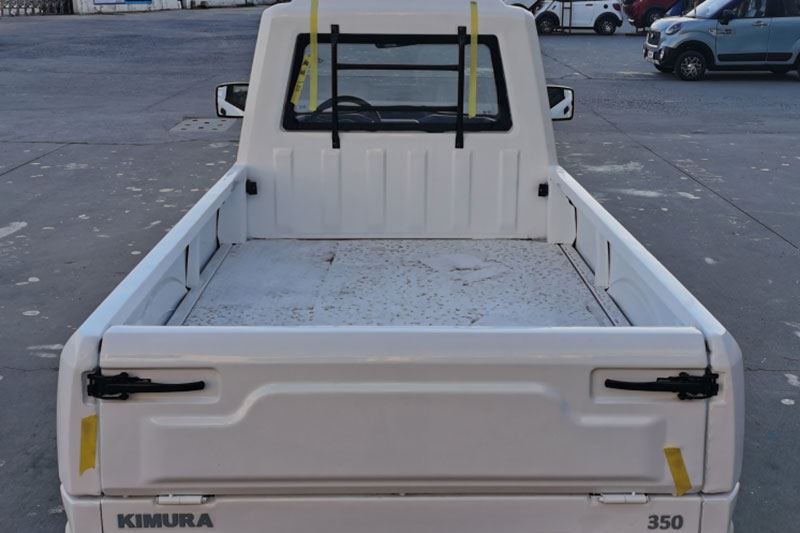

      Open Cargo Box
    • Details

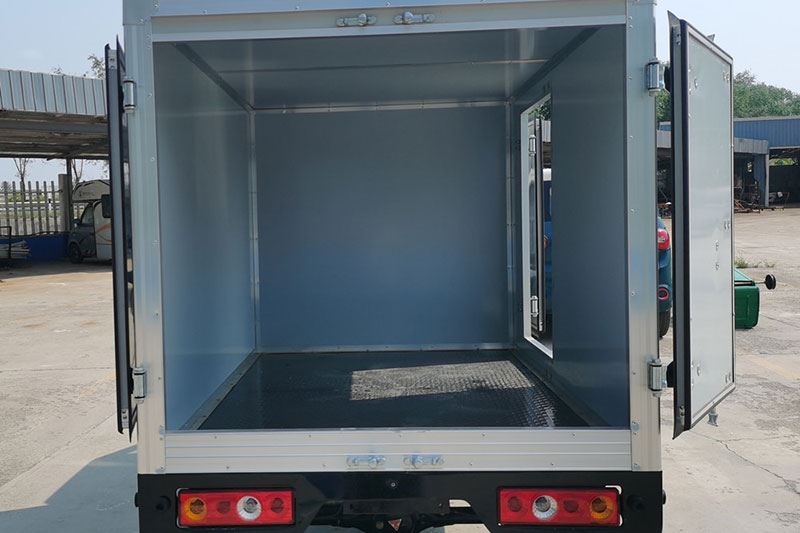

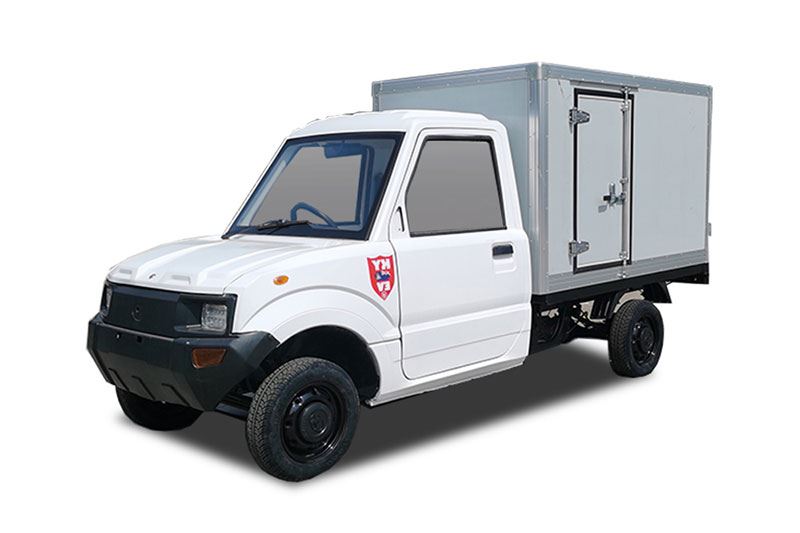

      Cargo Box
    • Details

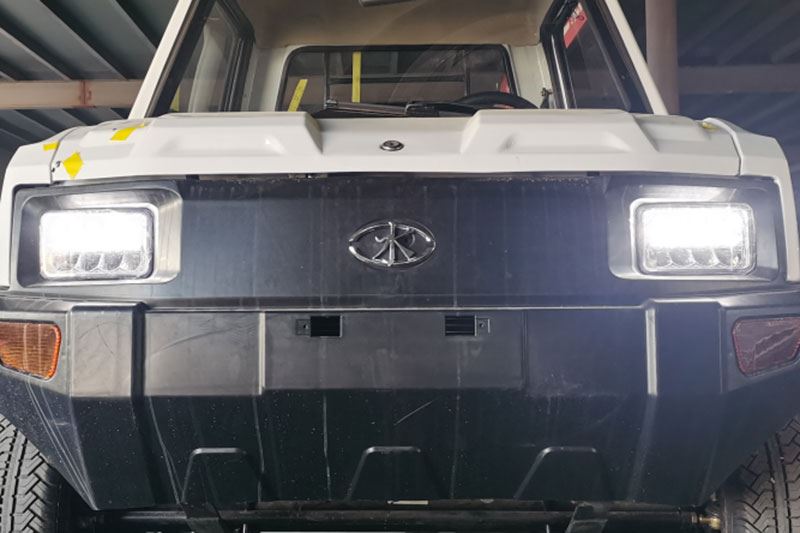

      Combination Headlight
    • Details

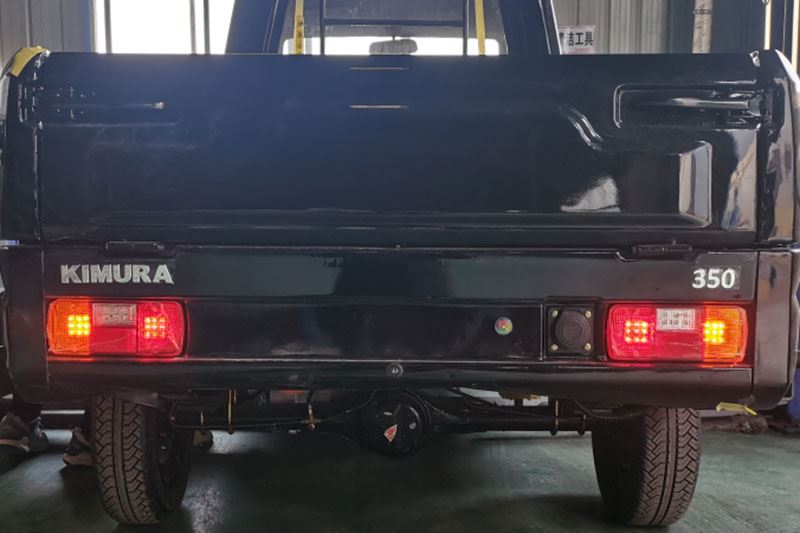

      Combination Tail Lamp
    • Details

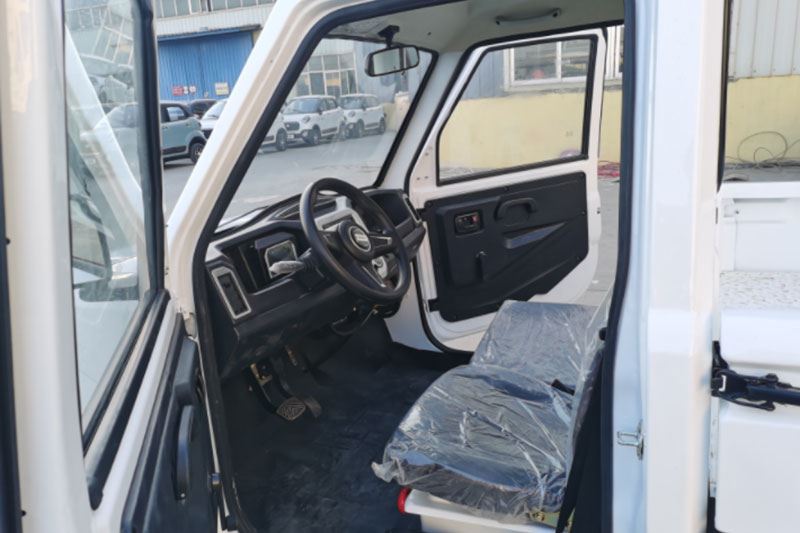

      Large Space Cab
    • Details

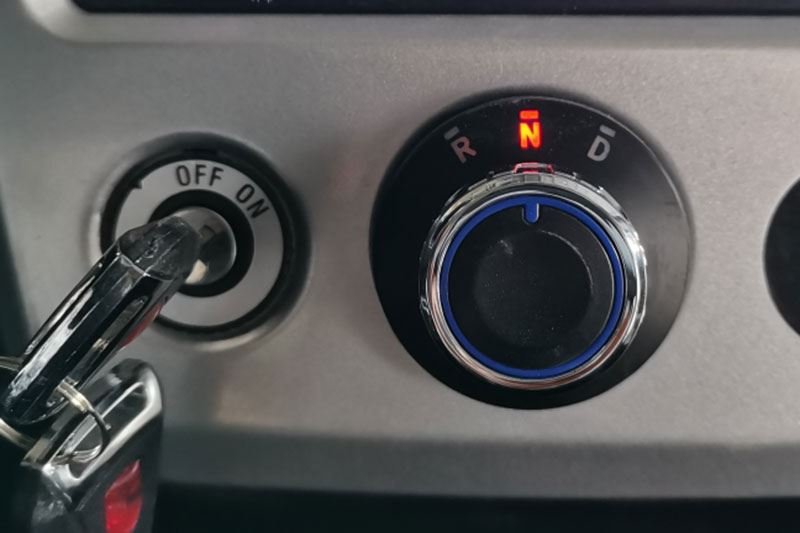

      Rotary Gear Switch
    • Details

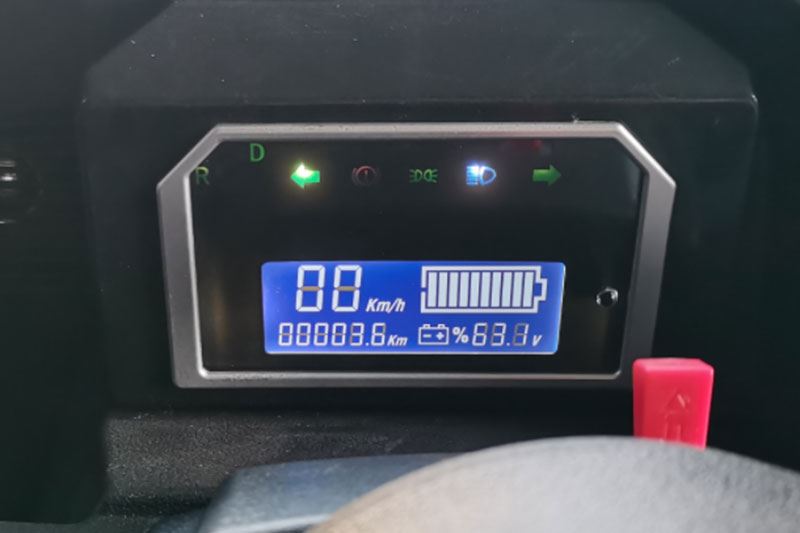

      Smart Display Panel
    • Details
      Multimedia Touch Screen
    • Details

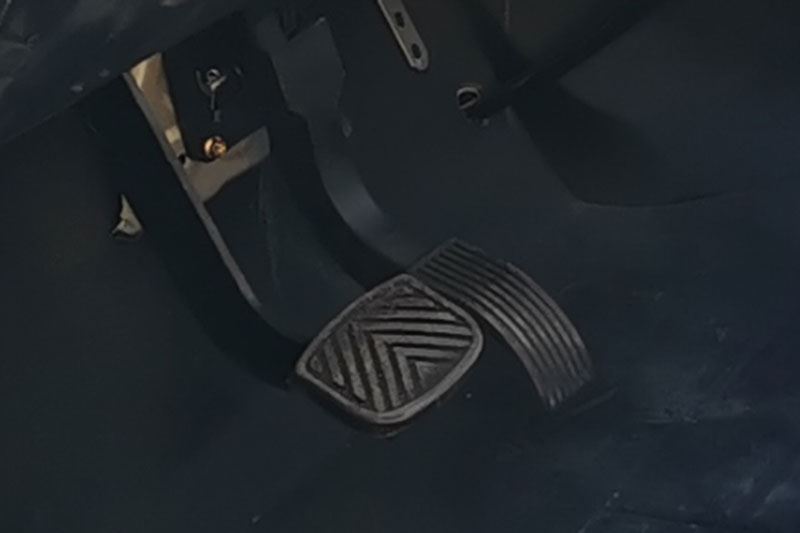

      Accelerator and Brake
    Aucwell is an EV company that specializes in producing electric cargo vans, electric minibuses, electric light trucks, and electric pickup trucks. Some of our models have received certification from the EU. Our partnership with Skywell allows us to offer a complete line of production and strong productivity, with the ability to provide customized solutions. Our products can be found in many countries overseas, and we have gained acceptance and a reputation for producing high-quality and high-performance vehicles.
