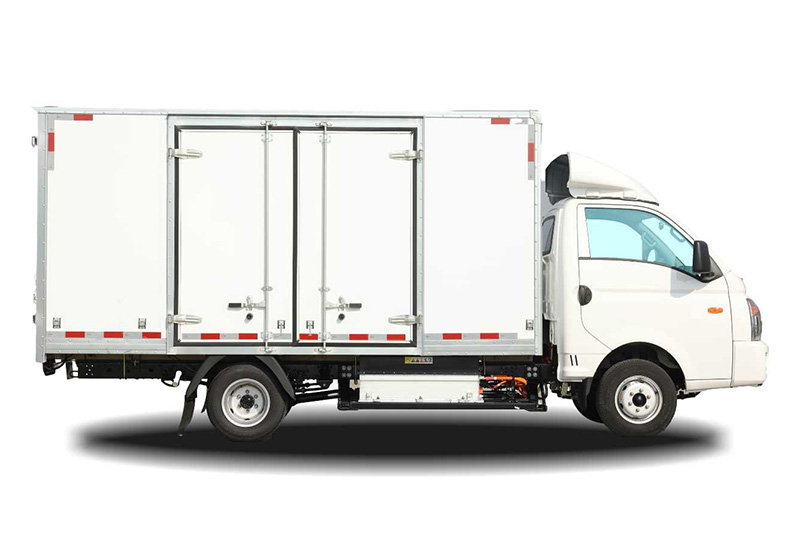

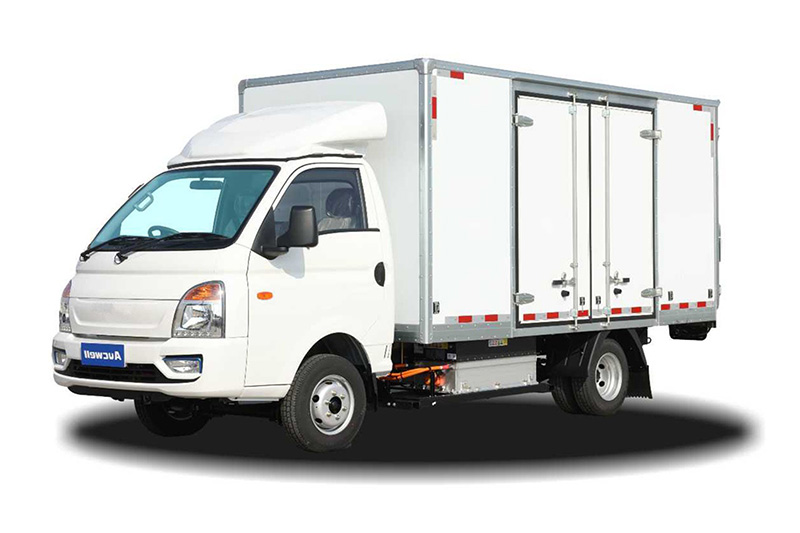

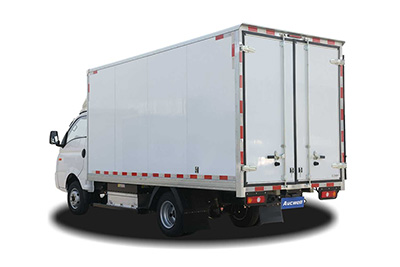

    K10

    Electric Light Duty Truck

    A light duty truck, this electric vehicle is well-equipped with a variety of functions, available in the enclosed box, dropside, and refrigerated versions.

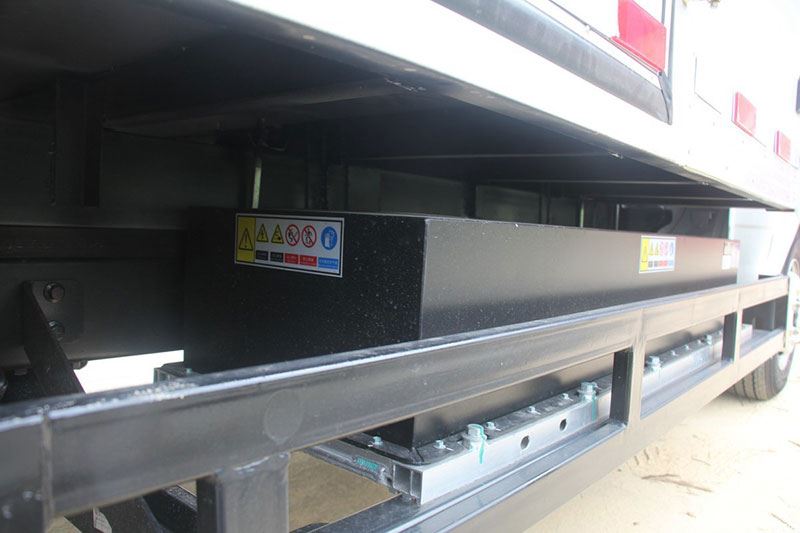

    With a dimension of 5,700*1,750*2,680mm and a high-strength frame, this electric light truck boasts a superior loading capacity. It is powered by our self-developed main battery pack, motor, electric control, and vehicle controller. Plus, our advanced battery heating system ensures reliable performance even in the coldest of weather conditions.

    Features
    • A dual-function integrated high-voltage distribution cabinet that saves space and improves the motor efficiency to 97%, resulting in a more robust and comfortable driving experience.
    • Larger loading capacity: up to 11m³volume 1,790kg payload capacity.

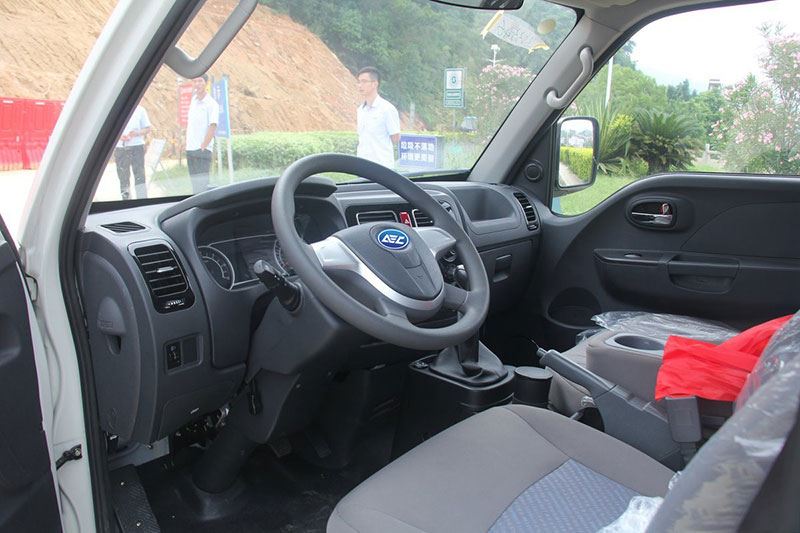

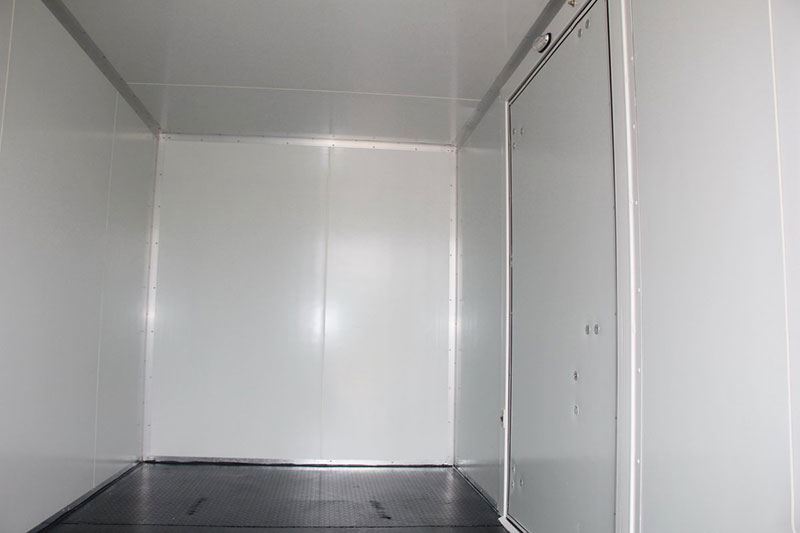

    • Impressive and practical interior design. Optional corrugated board for the cargo box, which provides extra protection and aesthetics at the same time.
    Vehicle Tour of K10 Electric Light Duty Truck
    Road Driving Test of K10 Electric Light Duty Truck
    • Max. Speed (km/h)

      Max. Speed (km/h)

      90 km/h

    • Battery Capacity (kWh)

      Battery Capacity (kWh)

      61.82kWh (Yiwei)

    • Driving Range (km)

      Driving Range (km)

      268km

    Technical Parameters
    Main Parameters Electric Truck Type Dropside Truck Cargo Box Truck
    Vehicle Dimensions (mm) 5,620*1,760*2,090 5,700*1,750*2,680
    Truck Bed / Cargo Box Size (mm) 3,510*1,660*370 3,640*1,690*1,800
    Wheel Base (mm) 3,100
    Curb Weight/Total Mass (kg) 2,150 / 4,200 2340/4200
    Payload Capacity (kg) 2,050kg 1,860kg
    Approach/Departure Angle (°) 20 / 16 20 / 15
    Front/Rear Suspension (mm) 1,190/1,330 1,190 / 1,410
    Front/Rear Tracks (mm) 1,365 / 1,235
    Dynamic Performance Max. Speed (km/h) 90
    Climbing Capacity (%) 20
    Battery Capacity (kWh) 61.82kWh (Yiwei)
    Driving Range (km) 268
    Motor Type Permanent magnet synchronous motor
    Peak Power and Torque (kW/Nm) 112/255

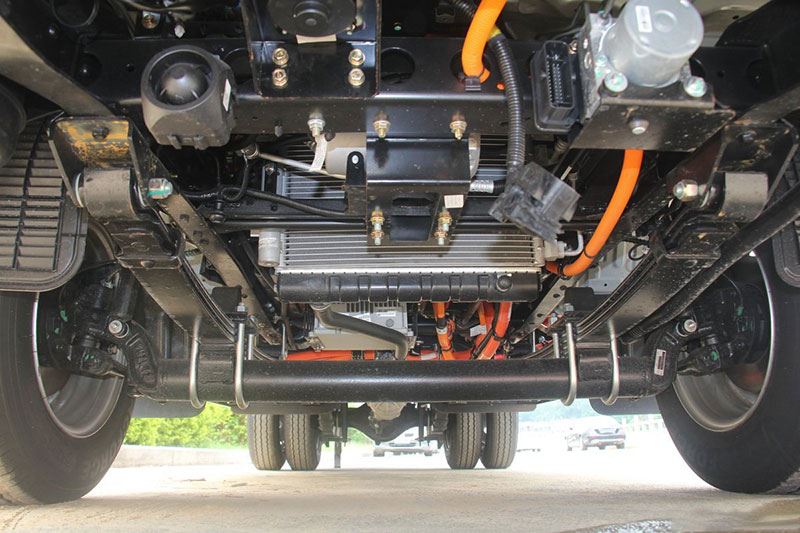

    Chassis
    Steering systems
    Drive Mode Middle-engine Rear-drive
    Front Suspension Horizontal plate spring type independent suspension
    Rear Suspension Horizontal plate spring type independent suspension
    Steering Type EPS Electronic Power Steering
    Wheels
    Brake System
    Tire Size 185R15LT 8PR
    Wheel Material / Tire Steel Wheels / 6
    Front and Rear Brake System Front Disc Rear Drum
    Brake Type Double circuit hydraulic brake
    Parking Brake Ratcheting Zip Type
    Body Structure Body Structure Non Load-supporting
    NO. of Doors 2
    NO. of Seats 2
    Charging Configuration GB Fast Charger ●
    6.6kW AC Slow Charger ●
    Basic Configurations
    Model Cargo Box Truck Dropside Truck
    Truck Body Color Steel Composite Plate ●
    Corrugated Sheet ●

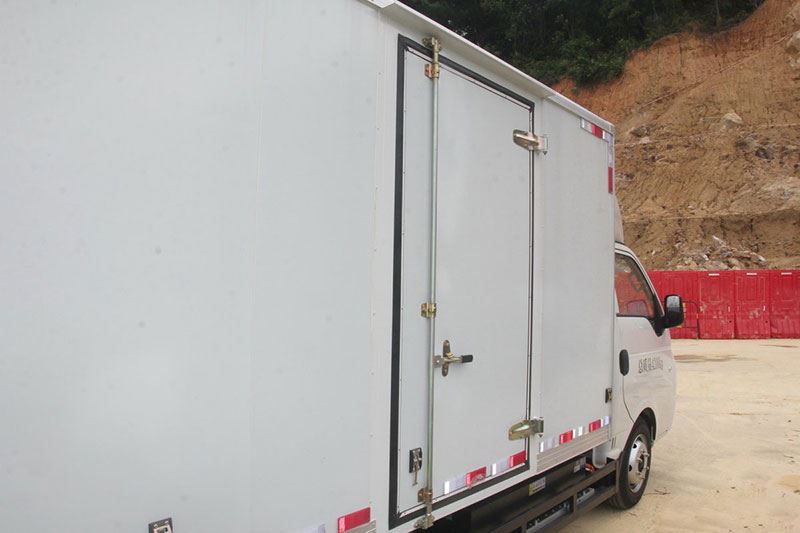

    Single Side Door Open ●
    Safety Device Braking Energy Recovery ●
    Pedestrian Reminder ●
    Driver's Seat Belt Reminder ●
    ABS+EBD ●
    Three-Point Safety Belts ●
    Controllability Reverse Radar ●
    Wheel-Slip Control ●
    Upper Front Bracket ○ ●
    Front Fog Lamps ●
    Headlamp Height Adjustable ●
    Central Lock ●
    Remote Control Key ●
    Internal Configuration Front Door Electric Window ●
    Inner Rear-view Mirror ●
    Driver And Co-Pilot Sunshield ●
    Cockpit Floor Material Common floor leather
    Seats Material Fabric
    Driver Seats Adjusted Manual
    Co-Pilot Seats Adjusted Manual
    Driver Seats Adjusting Way Front and back adjustment,Back Angle adjustment
    Co-Pilot Seats Adjusting Way Back Angle adjustment
    Multimedia Radio + USB ●
    NO. Of Speaker 4
    A/C Front Cooling ●
    Front PTC Heater ●
    Safety Equipment Jack,Extinguisher,Stop Wedge,Warning triangle

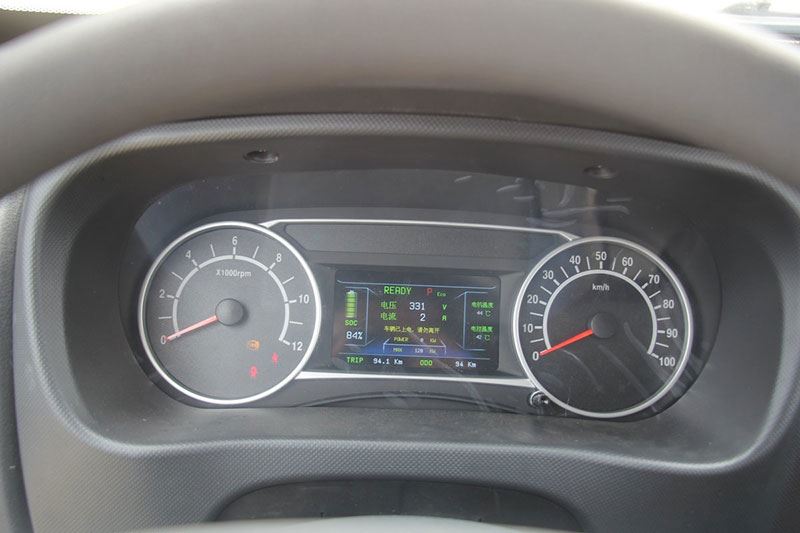

    Details
    • Details
    • Details
    • Details
    • Details
    • Details
    • Details
    Aucwell is an EV company that specializes in producing electric cargo vans, electric minibuses, electric light trucks, and electric pickup trucks. Some of our models have received certification from the EU. Our partnership with Skywell allows us to offer a complete line of production and strong productivity, with the ability to provide customized solutions. Our products can be found in many countries overseas, and we have gained acceptance and a reputation for producing high-quality and high-performance vehicles.
